Coiled Tubing Solutions
Delivering RIG and RIG-LESS operations with a full spectrum of services, including Gas Lift, Stimulations, Clean-Outs, Fishing & Milling, Multilateral, and Velocity Strings. Our truck-mounted Coiled Tubing Units are designed for fast mobilization and efficient rig-up, even in space-limited locations. Each unit integrates CT Reel, Control Cabin, Power Pack, Injector Head, Stuffing Box, and BOP to ensure safe and reliable operations.

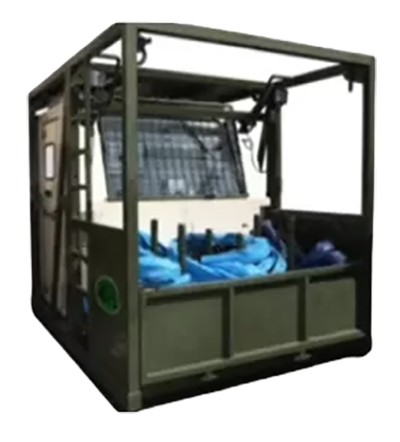

Control Cabin
The main console equipped with analog gauges, digital displays, and both electrical and hydraulic controls. It allows operators to monitor all parameters and safely manage every function of the Coiled Tubing unit during operations.

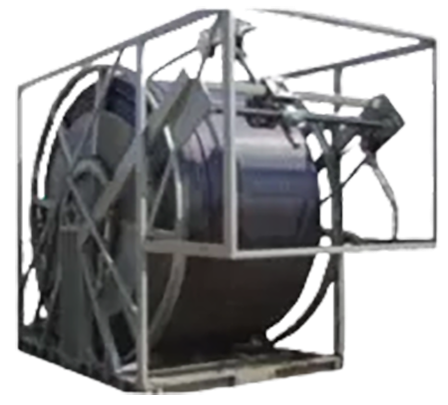

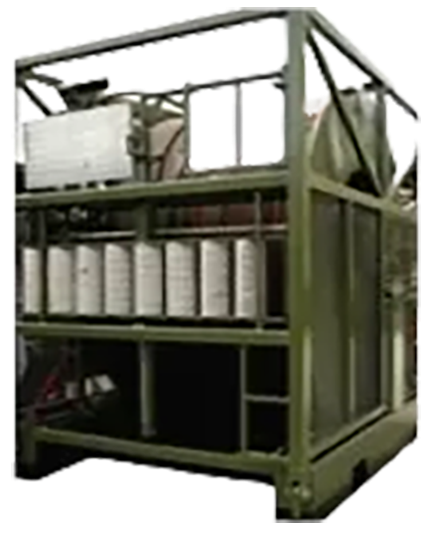

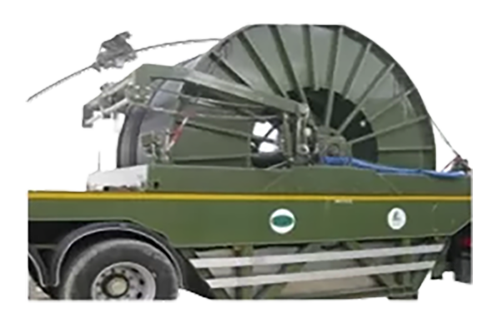

Reel
The Reel stores the coiled tubing string during transport or idle phases and provides smooth spooling during operations. It also enables fluid pumping through the tubing while in use.

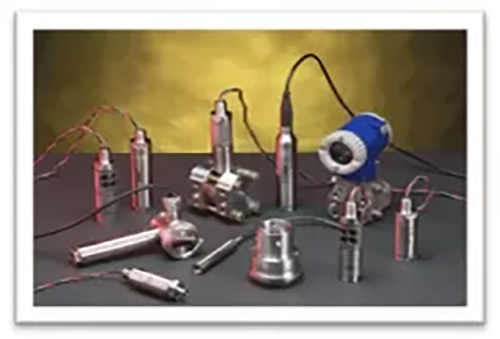

Data Acquisition System
The SAMDS (SMAPE Acquisition & Monitoring Data System) is Ital Services Egypt’s real-time monitoring and analysis solution. It integrates stand-alone PCs and server environments to manage and analyze data from both coiled tubing and pumping operations. The system records and displays key parameters—such as fluid densities, flow rates, nitrogen rates, pressures, and volumes—giving engineers a complete and reliable overview of ongoing operations.

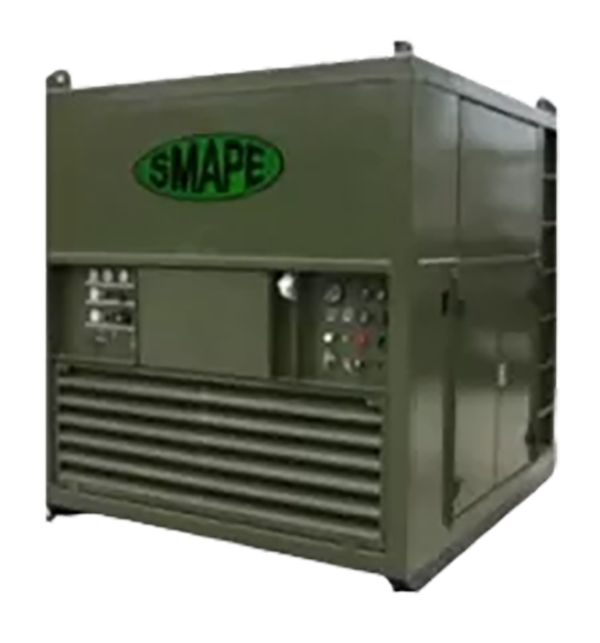

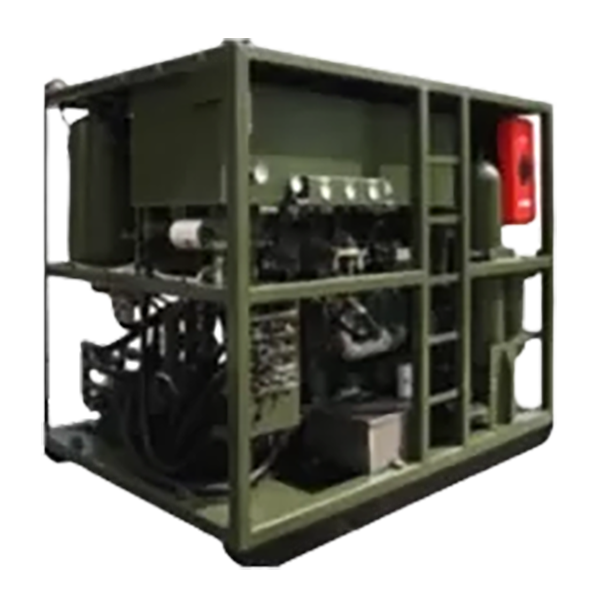

Power Pack
The Power Pack is the heart of the coiled tubing unit, driven by a diesel engine and multiple pumps. It supplies the hydraulic power needed to operate all key components—including the injector head, reel, BOP, and stuffing box. An auxiliary circuit also provides power to additional equipment, such as the mix tank agitator, ensuring full operational efficiency.

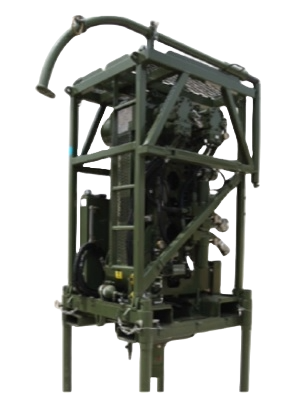

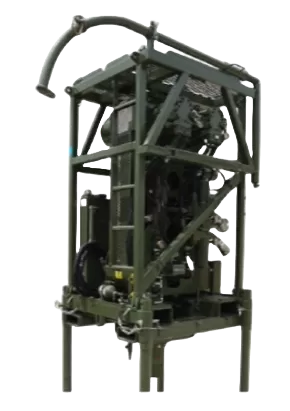

Injector Head
The Injector Head is a key component of the coiled tubing unit, designed to control tubing movement into or out of the well. It applies both dynamic and static force to ensure safe traction and hold, while integrated sensors measure weight and depth in real time. Special chain assemblies and a hydraulic drive system provide the power and grip needed for efficient running and retrieval of the tubing string.

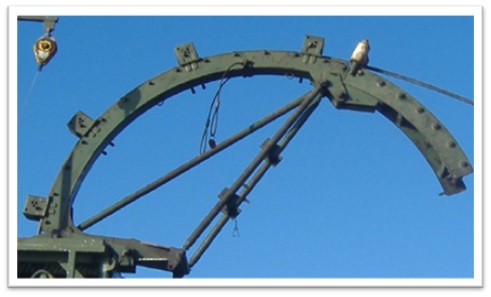

Gooseneck
The Gooseneck is a static guide mounted on the injector head to direct the coiled tubing from the reel into vertical alignment with the wellbore. Its wide-radius design minimizes stress and material fatigue, ensuring smoother operation and longer tubing life.
Stripper System (Stuffing Box)
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.

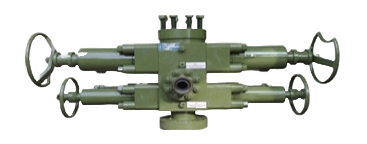

Blowout Preventers (BOPs)
BOPs are critical safety devices that contain wellbore pressure and prevent fluids from escaping into the atmosphere. A Coiled Tubing BOP is specially designed for CT operations and is equipped with multiple pairs of rams, each with a specific function:
Blind Ram
Seals the wellbore when tubing is out.
Shear Ram
Our website is designed for easy navigation, allowing you to find the information you need quickly and efficiently.
Slip Ram
We collaborate with trusted, high-quality partners to bring you reliable and top-notch products and services.
Pipe Ram
We provide 24/7 support through various channels, including live chat, email, and phone, to assist with any queries.

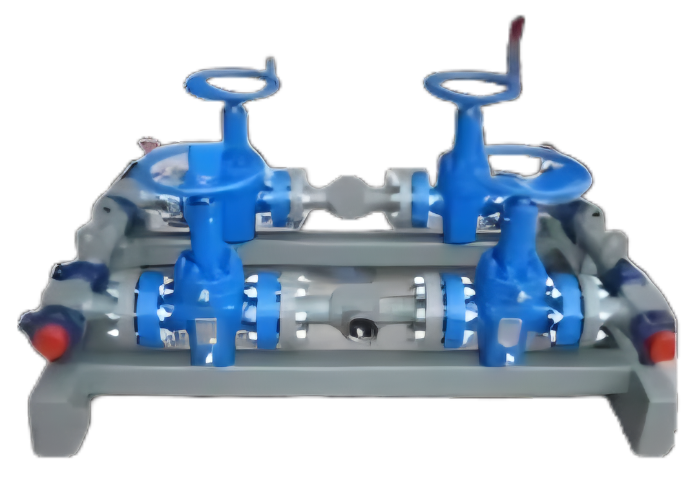

Choke Manifold
The Choke Manifold regulates wellhead pressure and controls the flow rate of returning fluids. It is built with high-pressure valves and at least two chokes—fixed, adjustable, or both—arranged so one can remain in service while the other is isolated for maintenance.
Contact us to learn more about our services
We deliver trusted solutions in Coiled Tubing, Nitrogen Pumping, Pumping & Stimulation, Well Testing, and EPF. Contact us today to explore how Ital Services Egypt can support your operations.
